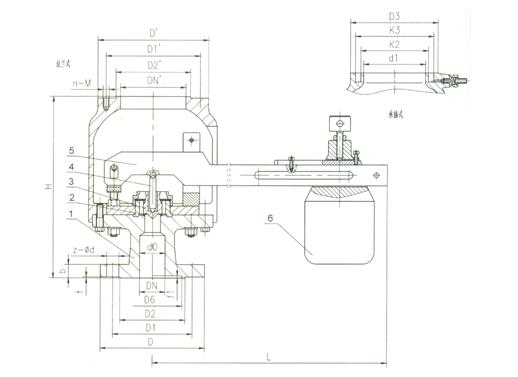

單杠桿安全閥外形尺寸和連接尺寸
|
公稱通徑 |
尺寸 |
|
do |
L |
L1 |
D |
K |
g1 |
f |
b |
z-?d |
DN' |
D1 |
K1 |
g2 |
b1 |
f' |
z-?d1 |
|
25 |
20 |
100 |
85 |
115 |
85 |
65 |
2 |
16 |
4-14 |
25 |
115 |
85 |
65 |
16 |
2 |
4-14 |
|
32 |
25 |
115 |
100 |
140 |
100 |
78 |
2 |
18 |
4-18 |
32 |
140 |
100 |
78 |
18 |
2 |
4-18 |
|
40 |
32 |
120 |
110 |
150 |
110 |
85 |
3 |
18 |
4-18 |
40 |
150 |
110 |
85 |
18 |
3 |
4-18 |
|
50 |
40 |
135 |
120 |
165 |
125 |
100 |
3 |
20 |
4-18 |
50 |
165 |
125 |
100 |
20 |
3 |
4-18 |
|
80 |
65 |
160 |
135 |
200 |
160 |
135 |
3 |
20 |
8-18 |
80 |
200 |
160 |
135 |
20 |
3 |
8-18 |
|
100 |
80 |
170 |
160 |
220 |
180 |
155 |
3 |
22 |
8-18 |
100 |
220 |
180 |
155 |
22 |
3 |
8-18 |
|
150 |
125 |
205 |
195 |
285 |
240 |
210 |
3 |
24 |
8-23 |
150 |
285 |
240 |
210 |
24 |
3 |
8-23 |
|
200 |
150 |
240 |
230 |
340 |
295 |
265 |
3 |
26 |
12-23 |
200 |
340 |
295 |
265 |
26 |
3 |
12-23 |
注：PN2.5、PN4.0MPa尺寸參照A41H-25/40型尺寸表。
■GA41H-16C/25/40 GA42H-100
GA41H型安全閥適用于溫度≤450℃的電站鍋爐和壓力容器上，防止壓力超過允許最高值，介質可為蒸汽、空氣。
|
